When specifying silica fabric for welding protection, furnace insulation, exhaust systems, fire barriers, or other high-temperature equipment, one of the first decisions is often the silica grade.
Two common options are 70% silica fabric and 96% high silica fabric.
Both are woven heat-resistant textiles, but they should not be considered interchangeable. Their silica content, temperature capability, processing, cost, and suitability for severe thermal exposure are different.
For industrial buyers, choosing between them should start with the actual service conditions rather than automatically selecting the grade with the highest silica percentage.
Use 70% silica fabric when the operating temperature is within its working range and the application requires a practical balance between thermal protection and material cost.
Use 96% silica fabric when the textile will face higher continuous temperatures, more severe thermal cycling, or an environment where additional thermal margin is important.
A simplified comparison is:
| Selection Factor | 70% Silica Fabric | 96% Silica Fabric |
|---|---|---|
| Typical silica content | 70% ±5% | ≥96% |
| Working temperature | Up to approximately 800°C | Continuous exposure up to approximately 1000°C |
| Thermal severity | High | Very high |
| Woven construction | Yes | Yes |
| Welding protection | Suitable | Suitable for more severe conditions |
| Furnace applications | Suitable within temperature range | Better suited to higher-temperature zones |
| Exhaust insulation | Application dependent | Preferred for severe heat exposure |
| Fabrication into blankets | Yes | Yes |
| Relative material cost | Lower | Higher |
| Primary reason to select | Performance/cost balance | Higher thermal capability |
The temperature values above correspond to BSTFLEX's current 70% and 96% silica fabric grades. Final selection should consider the finished assembly, exposure time, heat source, mechanical loading, and safety margin rather than temperature alone.
A buyer comparing 70% and 96% silica cloth may initially assume:
96% silica is always the better material.
From a procurement perspective, that is not necessarily the correct conclusion.
The better material is the one that meets the application's thermal and mechanical requirements without unnecessary specification.
Consider an industrial curtain exposed to temperatures well below the working limit of a 70% silica fabric. Moving automatically to a 96% grade may increase material cost without providing a meaningful operational advantage.
The opposite mistake is more serious.
If a fabric is continuously operating near or above the practical thermal capability of the 70% grade, selecting it purely to reduce purchasing cost can shorten service life and increase maintenance or replacement requirements.
The first specification should therefore be the real heat profile:
Normal operating temperature
Maximum continuous temperature
Intermittent temperature
Duration of thermal peaks
Distance from the heat source
Direct flame exposure
Radiant heat intensity
Contact with hot metal
Frequency of heating and cooling cycles
Only after these conditions are understood should silica percentage become the deciding factor.
The difference between 70% and 96% silica fabric begins with the fiber composition.
Silica textiles originate from glass-based fiber systems, but their chemistry and processing are modified to create materials capable of operating at substantially higher temperatures than conventional fiberglass.
A 96% high silica fabric contains a considerably greater proportion of silicon dioxide than a 70% grade.
That difference becomes important as the thermal environment becomes more severe.
At moderate industrial temperatures, both materials may perform effectively.
As temperature rises, however, the additional thermal capability of the higher-silica grade becomes increasingly relevant.
This is why silica percentage should be viewed as an engineering variable, not simply a marketing number.

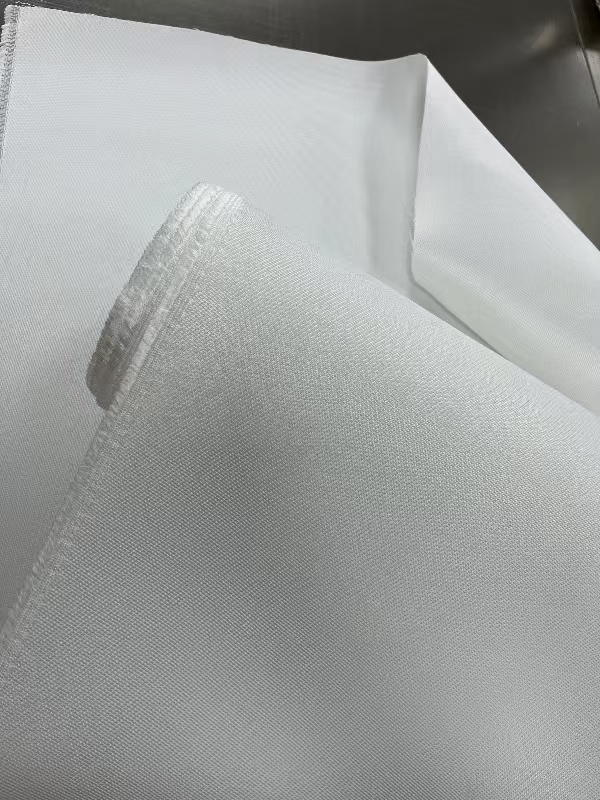

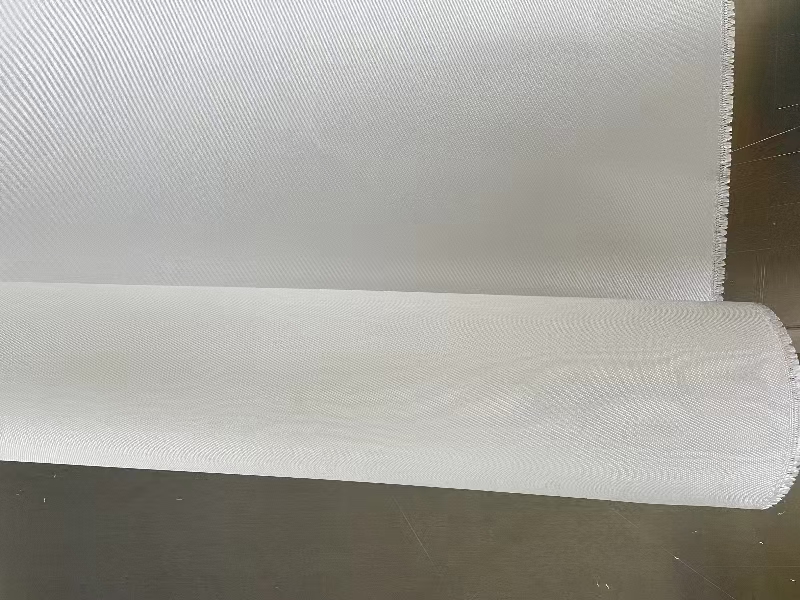

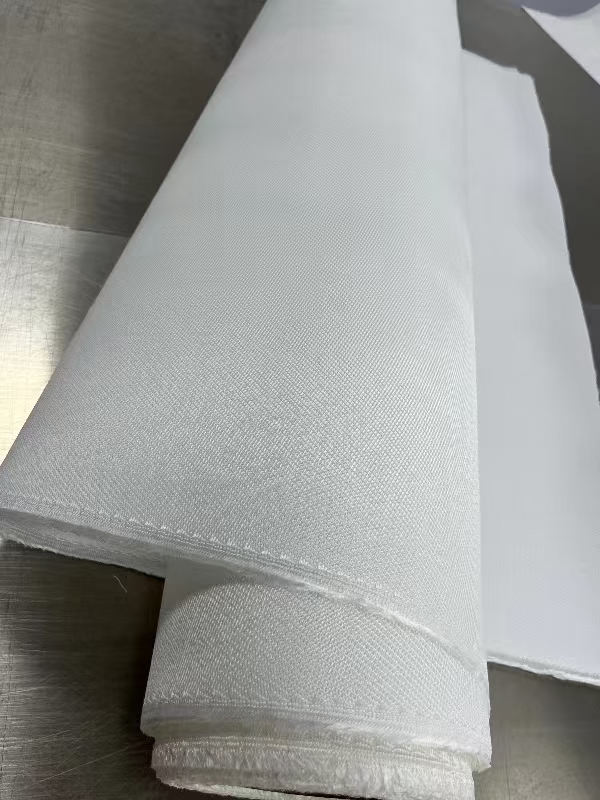

BSTFLEX's 70% Woven Silica Fabric contains approximately 70% ±5% silica and is intended for high-temperature industrial protection where its working-temperature range is sufficient.
This grade is particularly useful when a project requires a woven, flexible thermal barrier without the thermal demands that justify a 96% material.
Typical uses can include:
Welding blankets
Welding curtains
Spark containment
Furnace curtains
Thermal screens
Equipment covers
Heat-resistant partitions
Industrial maintenance protection
Fabricated thermal barriers
Its value lies in matching the material to the application.
For volume manufacturing, large welding curtains, disposable or periodically replaced protection systems, and cost-sensitive industrial projects, this distinction can become commercially significant.
Consider the 70% grade when:
The continuous operating temperature is safely within its rated range.
A reasonable thermal margin should remain between normal service temperature and the fabric's practical operating limit.
Extreme-temperature exposure is infrequent or absent.
There is little benefit in paying for additional temperature capability that the installation will never use.
Large quantities of fabric are required.
Material economics become increasingly important for large curtains, blankets, screens, and OEM production runs.
The fabric is a replaceable protection component.
Some welding and fabrication environments naturally consume protective textiles over time through abrasion, contamination, cutting, and mechanical damage.
In these cases, replacement economics can matter almost as much as maximum thermal capability.

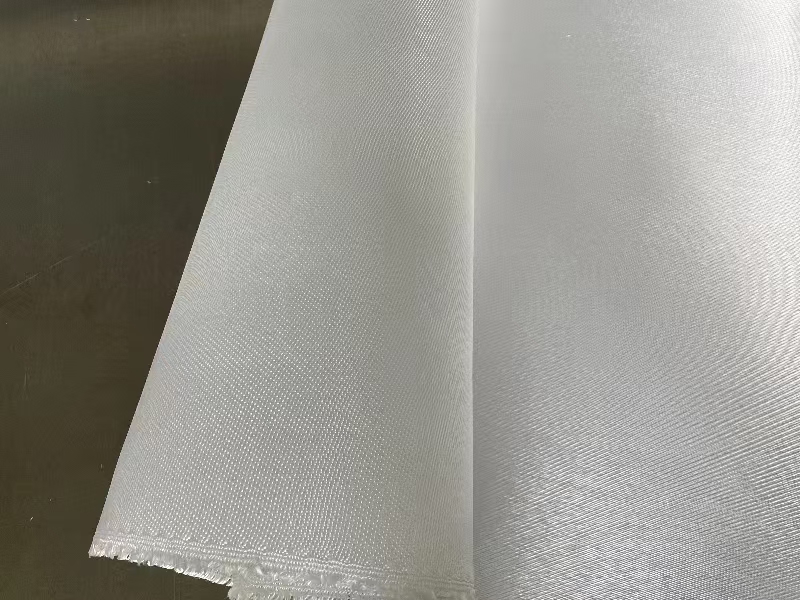

The 96% High Temp Silica Fabric is manufactured from high-purity silica fiber containing at least 96% SiO₂.
It is designed for more severe high-temperature environments and continuous thermal exposure up to approximately 1000°C according to the current BSTFLEX product specification.
This makes it a stronger candidate for applications where the fabric will operate beyond the practical range of lower-silica textiles.
Common examples include:
High-temperature furnace protection
Severe welding and cutting environments
Exhaust thermal insulation
Engine compartment heat protection
Foundry thermal barriers
Metallurgical equipment
High-temperature removable insulation systems
Industrial fire curtains
Specialized aerospace thermal protection
High-temperature equipment covers
Operating temperature is the dominant design constraint.
If the expected continuous temperature exceeds the capability of the 70% grade, the selection becomes straightforward.
Thermal peaks are severe.
A higher-temperature material can provide additional margin in installations subject to substantial temperature fluctuations.
Access for replacement is difficult.
The cheapest fabric is not necessarily the lowest-cost solution when replacement requires machinery shutdown, insulation removal, scaffolding, or extensive maintenance labor.
Failure has significant consequences.
Applications protecting sensitive wiring, hydraulic systems, personnel, surrounding equipment, or production assets justify a more conservative thermal specification.
The fabric forms part of a multilayer insulation system.
High silica cloth is frequently used as a hot-face or protective textile within fabricated thermal insulation assemblies.
Consider two installations operating at exactly the same temperature.
One fabric hangs vertically as a stationary furnace curtain.
The other is repeatedly folded, dragged across metal edges, contaminated with oil, exposed to vibration, and removed for maintenance.
Although the temperature is identical, the material requirements are not.
This is why a professional 70% vs 96% silica fabric comparison needs to examine more than heat resistance.
Abrasion, flexing, vibration, and repeated handling can damage a textile before temperature does.
If abrasion is a major concern, changing the surface treatment may be more useful than simply increasing silica content.
Different weights provide different combinations of flexibility, coverage, handling characteristics, and mechanical durability.
Do not specify a silica percentage without also defining the required fabric weight.
Thickness becomes important when the fabric is incorporated into fabricated blankets or installed in confined spaces.
Fabric construction affects drape, dimensional stability, fabrication behavior, and the way the textile conforms to complex equipment.
A finished welding blanket or removable cover can fail at its seams even when the base silica fabric remains serviceable.
Thread, reinforcement, fasteners, and fabrication method therefore need to match the thermal environment.
There is no universal answer.
For general welding, cutting, spark containment, and fabrication-area protection, 70% silica fabric can be an effective solution when temperatures remain within the intended operating range.
For more severe exposure, heavy industrial welding, prolonged proximity to hot components, or applications requiring a larger thermal safety margin, 96% silica fabric may be more appropriate.
The decision should also consider:
Spark intensity
Slag exposure
Orientation of the blanket
Distance from the welding operation
Duration of exposure
Whether the blanket is horizontal or vertical
Mechanical abrasion
Frequency of reuse
A welding blanket lying horizontally beneath an operation can experience very different exposure from a vertical curtain several meters away.
Specifying both simply as "welding blanket material" does not describe the actual operating conditions adequately.
Furnace applications make temperature distribution especially important.
The temperature outside a furnace enclosure can be dramatically different from conditions near a door opening, burner, hot duct, inspection port, or internal hot zone.
For moderate-temperature external protection, a 70% silica fabric may be sufficient.
For locations approaching extreme continuous temperatures, 96% high silica fabric becomes the more appropriate candidate.
Furnace engineers should identify the temperature at the exact installation position, rather than using the furnace's nominal internal temperature as the only selection criterion.
This avoids both over-specification and under-specification.
Exhaust applications require a different selection approach because exhaust systems combine high temperature with vibration, thermal cycling, restricted installation space, and complex geometry.
A high silica textile may be used around:
Exhaust pipes
Exhaust manifolds
Turbocharger areas
Generator exhaust systems
Diesel engine exhaust components
Marine exhaust equipment
Industrial process exhaust lines
For severe exhaust environments, 96% high silica fabric generally provides greater thermal margin.
But silica cloth by itself should not automatically be treated as a complete insulation system.
Where the objective is to substantially reduce external surface temperature or heat loss, the construction may require an insulation layer beneath the silica fabric.
The outer textile then performs as part of a multilayer thermal system rather than acting as the sole insulation medium.
Changing from 70% to 96% silica does not automatically solve an abrasion problem.
This is an important distinction.
Silica percentage primarily addresses the fiber's thermal characteristics. If the fabric is failing because of rubbing, repeated handling, or mechanical wear, a surface treatment may be required.
For example, BSTFLEX supplies Vermiculite Coated Silica Cloth for applications where additional surface durability is useful.
For other installations, Silicone Rubber Coated High Silica Cloth can provide a different surface characteristic while retaining a high-temperature silica textile as the base material.
The correct engineering question therefore changes from:
Should I buy 70% or 96%?
to:
What combination of fiber grade, fabric construction, weight, thickness, and surface treatment matches the failure mechanism?
That is a much more useful specification.
High silica content provides thermal resistance, but radiant heat control is a separate function.
If the primary objective is to reflect radiant energy away from a protected component, an aluminized surface may be more effective than simply increasing the silica percentage.
BSTFLEX's Aluminum Coated High Silica Fabric combines a silica textile substrate with a reflective aluminum surface for applications where radiant heat is a major concern.
This illustrates an important material-selection principle:
The highest-temperature base fabric is not automatically the best thermal protection system.
Heat-transfer mode matters.
Procurement teams naturally compare material prices.
But the meaningful comparison is installed lifecycle cost, not simply purchase price.
Consider:
Initial fabric cost
70% silica fabric will generally be the more economical base-material option.
Fabrication cost
Cutting, sewing, reinforcement, eyelets, hooks, fasteners, labels, and custom fabrication can represent a significant proportion of finished-product cost.
Installation labor
If both grades require the same installation labor, saving a small amount on fabric may have little impact on total project cost.
Replacement interval
A lower initial material cost becomes less attractive if the component requires substantially more frequent replacement.
Production downtime
For inaccessible industrial equipment, shutdown cost can exceed the cost of the insulation material many times over.
The purchasing decision should therefore consider:
Material cost + fabrication + installation + maintenance + replacement + downtime
rather than comparing the textile price alone.
Use the following matrix as a preliminary specification guide.
| Application Condition | 70% Silica | 96% Silica | Additional Consideration |
|---|---|---|---|
| Moderate high-temperature protection | Strong candidate | Possible | Compare project economics |
| Continuous exposure approaching 800°C | Evaluate carefully | Strong candidate | Maintain thermal margin |
| Continuous exposure above 800°C | Generally not preferred | Strong candidate | Verify exact service conditions |
| Severe thermal cycling | Evaluate | Preferred candidate | Consider fabrication design |
| General welding curtain | Strong candidate | Possible | Check spark/slag exposure |
| Severe welding protection | Evaluate | Strong candidate | Consider coated construction |
| High-temperature furnace area | Application dependent | Strong candidate | Measure local temperature |
| Severe exhaust environment | Application dependent | Strong candidate | Consider multilayer insulation |
| Radiant heat exposure | Grade alone is insufficient | Grade alone is insufficient | Consider aluminum surface |
| Heavy abrasion | Grade alone is insufficient | Grade alone is insufficient | Consider coating/reinforcement |
| Cost-sensitive large-area protection | Strong candidate | Evaluate need | Avoid unnecessary over-specification |
| Difficult-to-access installation | Evaluate lifecycle | Strong candidate | Replacement cost matters |
This matrix is a starting point rather than a substitute for an application-specific thermal assessment.
Instead of sending a supplier only:
We need high silica fabric. Please quote.
provide the following information:
Example:
Normal operating temperature: 650°C.
Example:
Short thermal peaks may reach 850°C.
Specify whether the fabric encounters radiant heat, direct flame, hot-surface contact, welding sparks, slag, or another heat source.
Specify whether you need:
Fabric rolls
Cut pieces
Welding blankets
Curtains
Sewn covers
Removable insulation components
Custom shapes
Include fabric width, thickness or weight preference, finished dimensions, annual demand, and any special packaging requirements.
Providing this information allows the manufacturer to determine whether 70%, 96%, or a coated silica construction is technically and commercially appropriate.
The choice can be reduced to one principle:
Do not pay for temperature capability you do not need, but do not remove the thermal margin your application requires.
Choose 70% Woven Silica Fabric when its working-temperature capability comfortably covers the real service environment and project economics are important.
Choose 96% High Temp Silica Fabric when higher continuous temperatures, severe thermal conditions, difficult maintenance access, or greater thermal margin justify the higher-grade material.
If neither standard construction addresses the real problem, consider whether the application instead requires silicone coating, vermiculite treatment, an aluminum reflective surface, adhesive backing, or a fabricated multilayer insulation system.
For OEM and industrial projects, BSTFLEX can manufacture silica textile materials and fabricated thermal protection components according to required dimensions, fabric construction, surface treatment, and application conditions.
No. It provides greater high-temperature capability, but a 70% grade may be more economical when its performance comfortably meets the application requirements.
BSTFLEX's current 70% woven silica fabric is specified with a working temperature up to approximately 800°C. Continuous service near a material limit should nevertheless be evaluated carefully because actual performance depends on exposure duration and application conditions.
BSTFLEX's 96% high-temperature silica fabric is designed for continuous thermal exposure up to approximately 1000°C. Short-duration thermal events should be evaluated separately from continuous service.
No. Although both belong to glass-derived textile families, high silica fabric has a substantially higher silica concentration and is intended for more severe thermal environments.
Both can be used depending on the welding environment. A 70% grade can suit general high-temperature welding protection, while a 96% grade provides additional thermal capability for more severe exposure.
Yes. Industrial silica textiles can be supplied in different weights, thicknesses, widths, surface treatments, cut sizes, and fabricated constructions depending on the project.
When requesting a quotation, provide the operating temperature, peak temperature, heat source, exposure duration, required fabric weight or thickness, dimensions, quantity, and whether a coating or fabricated construction is required.
This allows BSTFLEX to evaluate the application rather than quoting a silica percentage in isolation.
For the complete material family, see the Silica Fabric product range.
English
français
Deutsch
русский
italiano
español
português
Nederlands
العربية
한국의
Türkçe
Polski
Tiếng Việt
slovenský
Indonesia
